CSS Grid Layout Cheatsheet

CSS Grid Layout Cheatsheet

what is css grid?

align direct child of the its display: grid items by grid.

www.youtube.com

contents

• gap
• fr
• repeat(times, numfr)
• repeat(auto-fill, minmax())
• repeat(times, width1, width2)
• auto-rows
• span

Define Number of columns and rows

Use these.

grid-template-columns: num num num;
grid-template-rows: num num num;

gap between each grid items

grid-column-gap: 20px;
grid-row-gap: 20px;
// or grid-gap:20px;

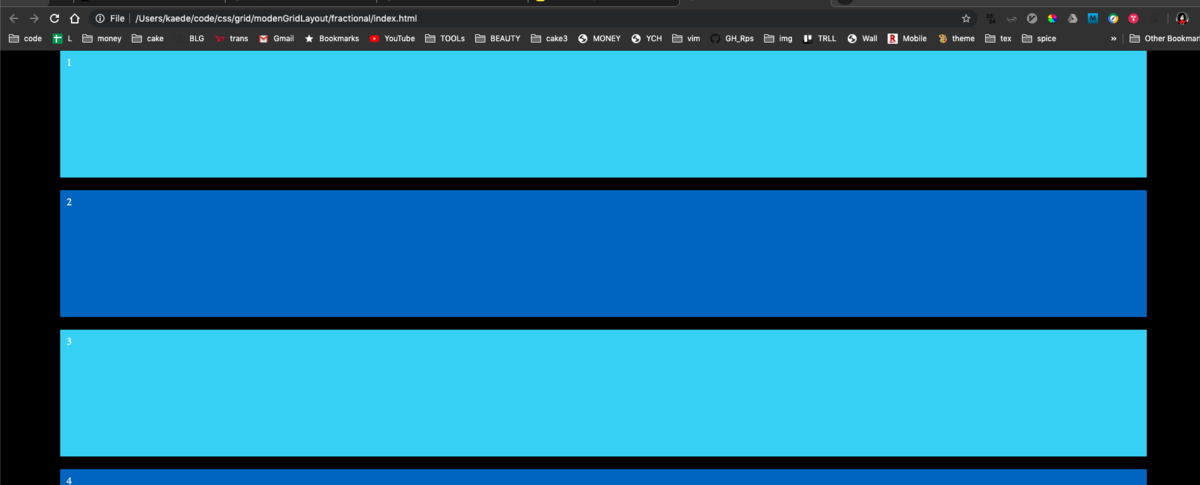

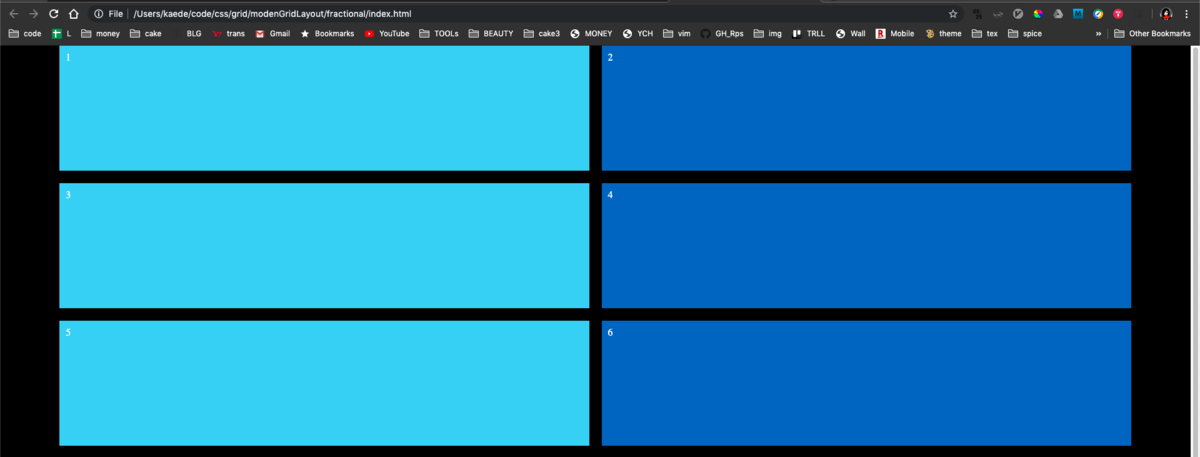

fr, repeat()

• fr is a fractional unit.
• equal width columns.
  1fr: 100% width 1 column.
  2fr: 50% width 2 column.
  3fr: 33% width 3 column.

grid-template-columns:

1fr

1fr

1fr 1fr

1fr 1fr 1fr

repeat()

• these are same.

grid-template-columns: 1fr 1fr 1fr 1fr 1fr 1fr 1fr 1fr 1fr 1fr 1fr;
grid-template-columns: repeat(10,1fr);

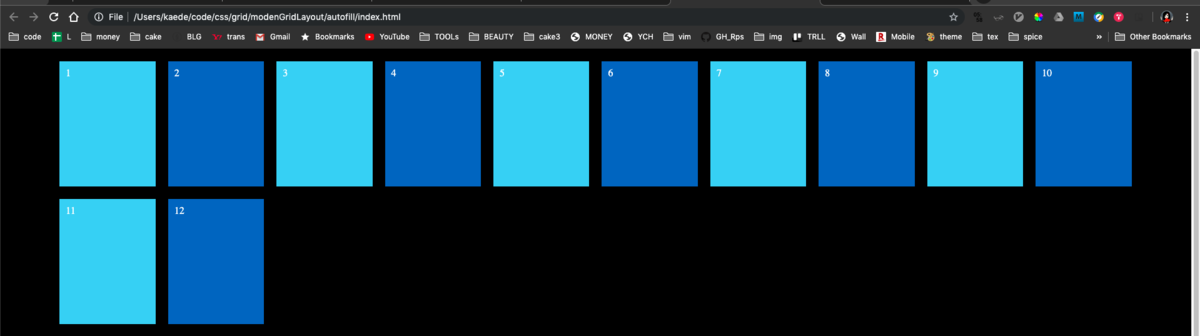

repeat(auto-fill, minmax())

css-tricks.com

• simple responsive layout element
• at least width 250px, align 1fr

grid-template-columns: repeat(auto-fill, minmax(250px, 1fr) );

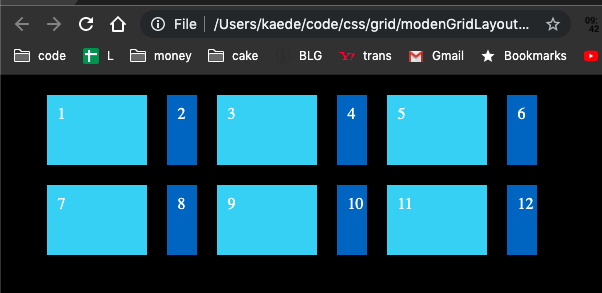

repeat pattern

• width (50px, 100px) x 3 times.

grid-template-columns: repeat(3, 50px 100px);

* width (100px, 30px) x 3 times.

grid-template-columns: repeat(3, 100px 30px);

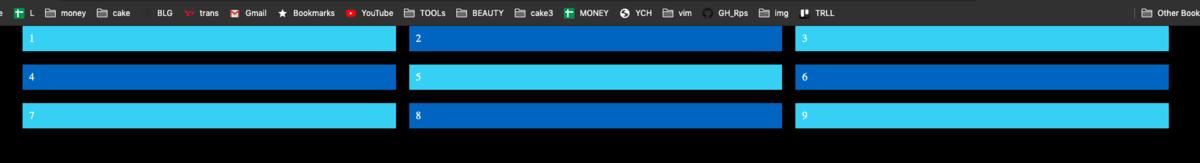

auto-rows

www.youtube.com

• define all rows height!

grid-auto-rows:70px;

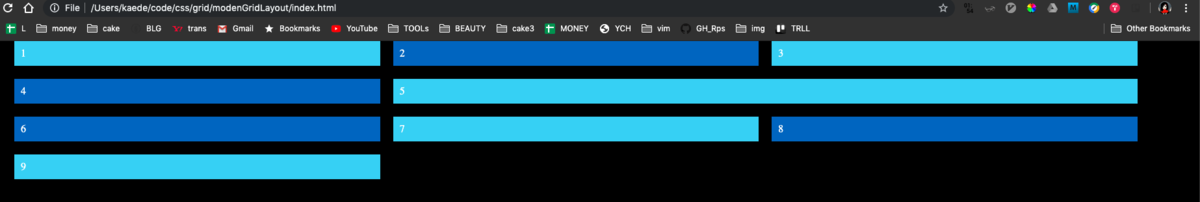

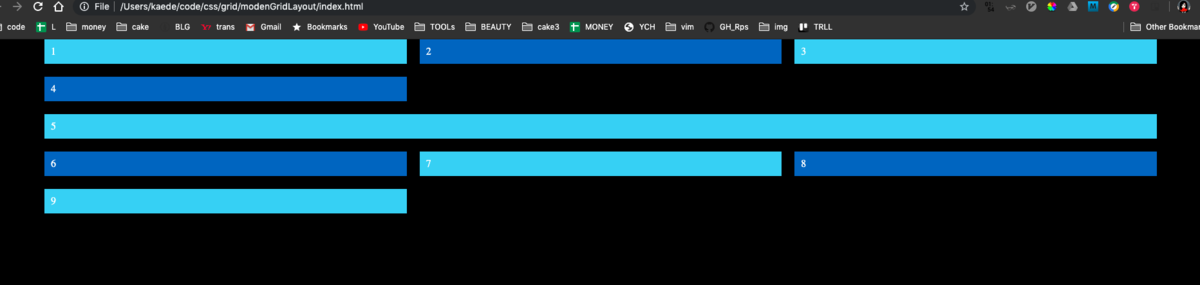

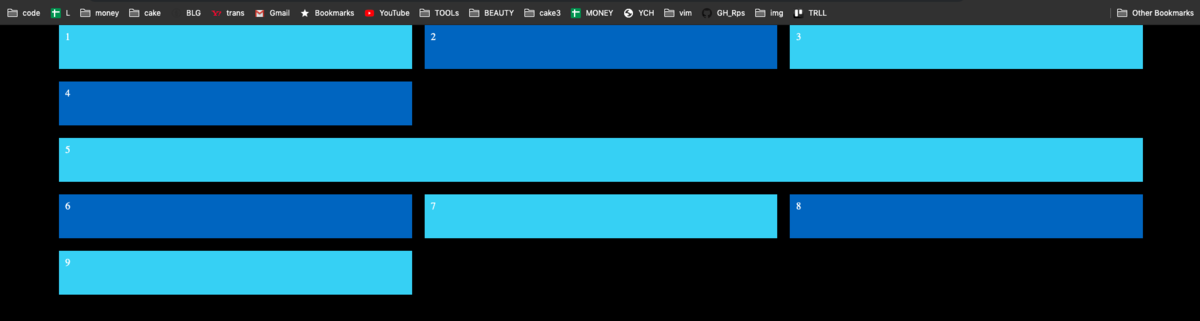

span

• increasing this increase the one grid.

.item5 {
    grid-column: span 3;
}

span 1 (default)

span 2

span 3

general

• use nth-child(even) to look easier.

.item:nth-child(even) {
    background: #236fc8;
}
